Caliper with watch
Left
  • Caliper with watch
  • Caliper with watch
  • Caliper with watch
  • Caliper with watch
Right

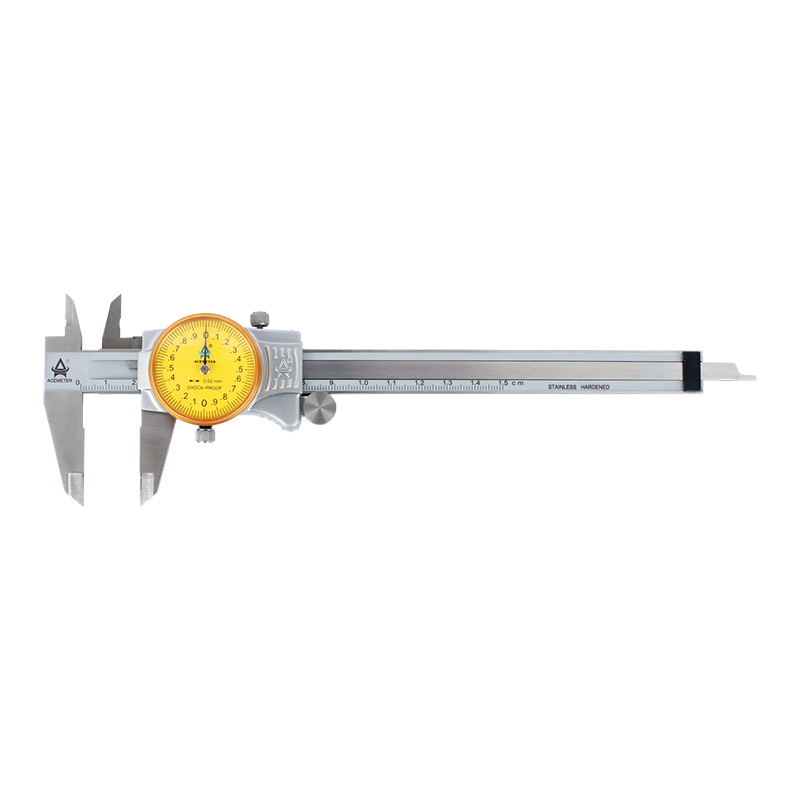

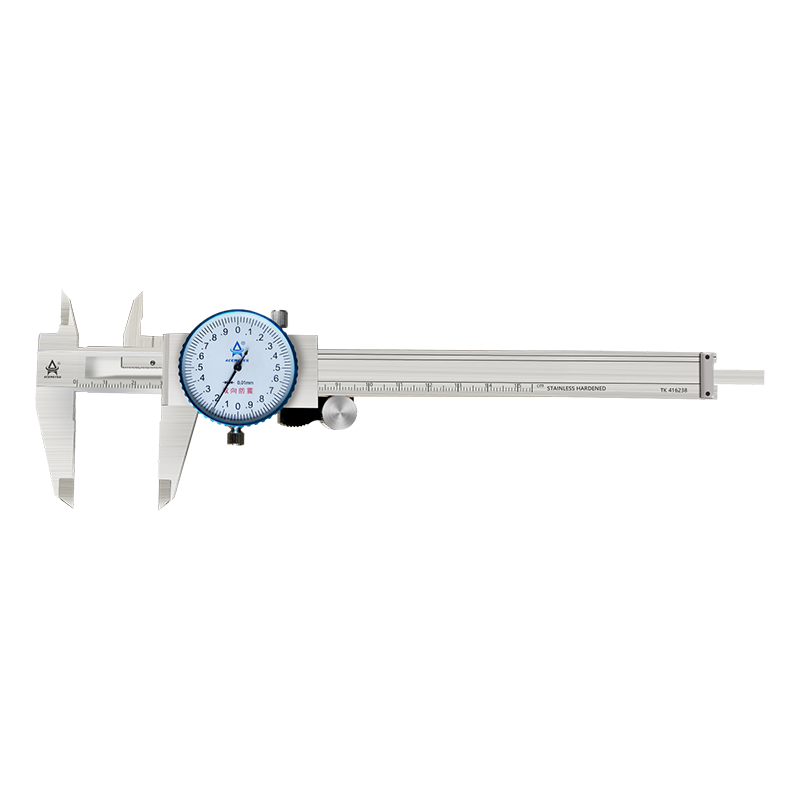

Caliper with watch

    Feature:Technical characteristics: • Resolution: Metric system 0.01mm and 0.02mm are optional • The ruler body and the ruler frame are heat treated as a whole, and all measuring surfaces are specially hardened and calendered • Two-way shockproof design • Adjustable dial, can be easily set to zero • Suitable for measuring inner diameter, outer diameter, depth and step • Provide three types of products: ordinary type, plastic cover type, metal cover type The standard configuration: • The sturdy aluminum housing can be used in harsh environments and will not be damaged even if it is used in a hot cutting environment • Planetary gear moves more smoothly • Packing box: plastic box
    Contact us with Mobile/Wechat/WhatsAPP!

    +86-13602329792  Mr.Zhu

    Inquiry
    • Parameter

      MODEL

      Range

      Resolution

      Accrucy

      L

      A

      B

      C

      D

      Remark
      521-1210-150mm0.02mm±0.03mm235mm40mm14mm16mm3.5mmnormal
      521-1220-200mm0.02mm±0.03mm287mm50mm24mm
      16mm3.5mm
      521-1220-300mm0.02mm±0.04mm405mm60mm62mm20mm4.0mm
      522-1210-150mm0.02mm±0.03mm235mm40mm14mm16mm3.5mmplastic
      522-1220-200mm0.02mm±0.03mm287mm50mm24mm16mm3.5mm
      522-1230-300mm0.02mm±0.04mm405mm60mm62mm20mm4.0mm
      523-1210-150mm0.02mm±0.03mm235mm40mm14mm16mm3.5mmmetal
      523-1220-200mm0.02mm±0.03mm287mm50mm24mm16mm3.5mm
      523-1230-300mm0.02mm±0.04mm405mm60mm62mm20mm4.0mm
